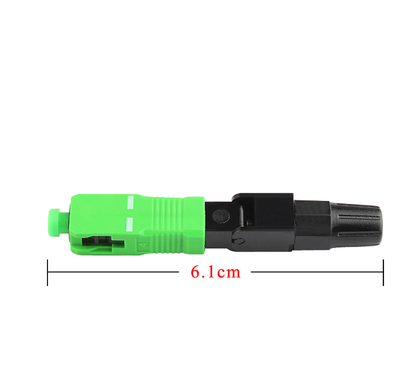

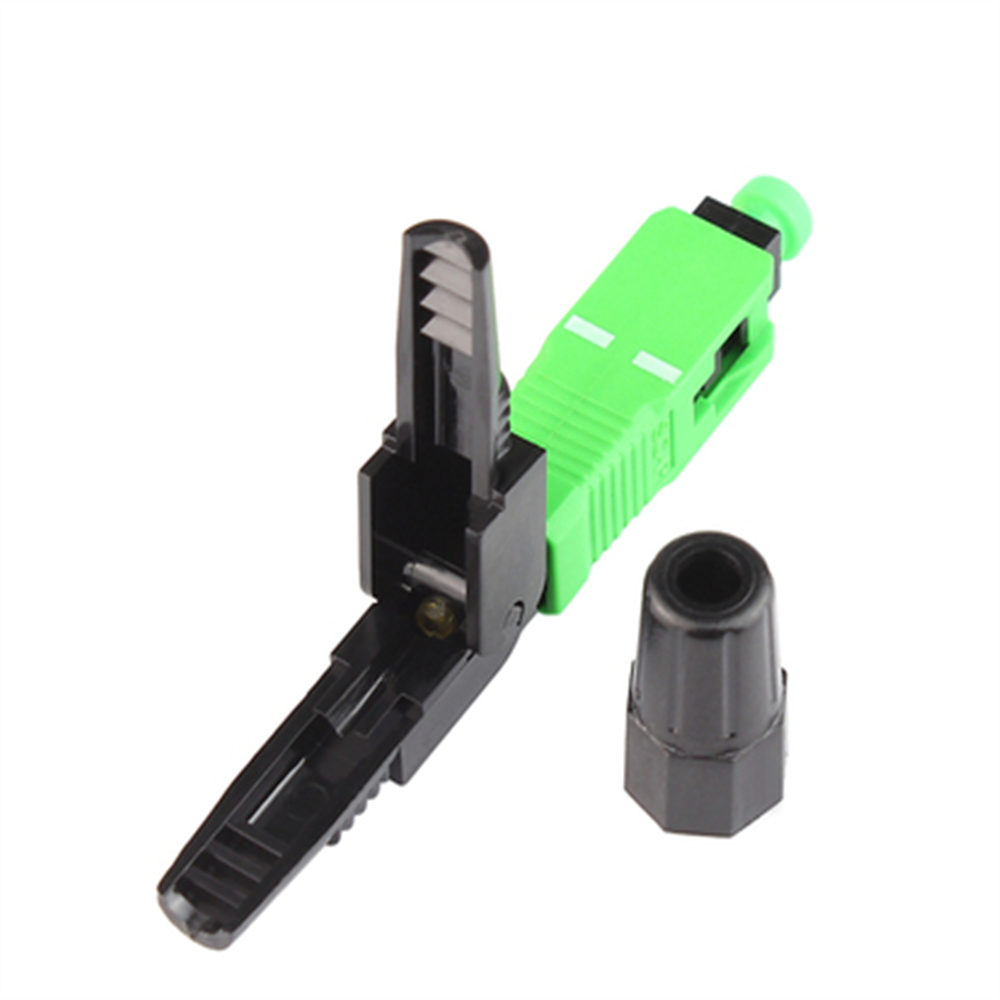

FTTH SC APC fiber optic fast connector sumitomo fast connector

Place of Origin : Hubei, China

Brand Name : OEM

Model Number : fast connector

Product name : fast connector

Application : FTTH FTTB FTTX Network

Type : SC

Color : Green

Certification : ISO9001:2008

Fiber Type : G657A

Connector : SC LC FC ST

Operating temperature : 40~+85

Return Loss : APC>65dB

Insertion loss : 0.3dB

Supply Ability : 100000 Piece/Pieces per Month

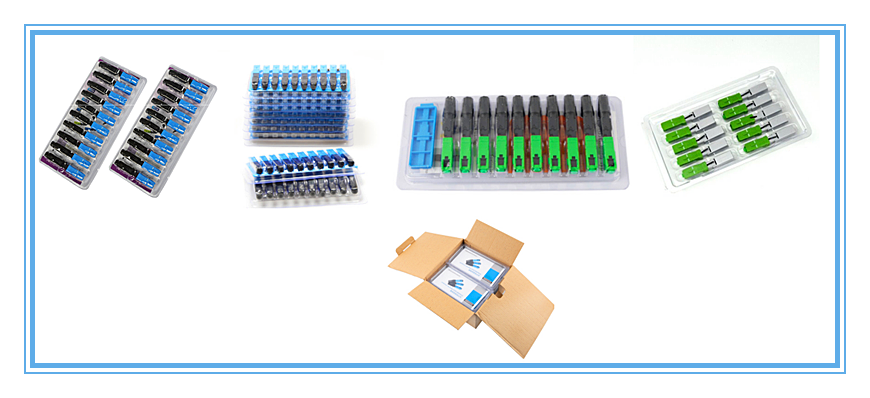

Packaging Details : Individual Package or plastic box

Port : Shenzhen port Shanghai port

MOQ : 10 Piece/Pieces

Price : $0.27 - $0.60 / Pieces

Contact Now

Product display

1.Description

Field Assmbly SC quick connector can proivide a quick and easy of fiber in the field.Options are avaliable for 900 micron allowing the installer to terminate and make connection in minutes at equipment and fiber patch panels.This connector system removes any requirement for epoxy,adhesive or costly curing ovens and polishing and fiber ederface inspection.

2.Features

1.Factory-installed fiber stub

2.No epoxy or polishing required

3.Quick and easy fiber termination in the field 4.Eliminates cable excess length and pigtail splicestorage

4.Eliminates cable excess length and pigtail splicestorage

5.Cost effective 6.Applicable to bow-type drop cable and 2.0/3.0 indoor cable ,telecom cable

3.Specification

Fast Connector Specification
Mode	SM		MM
Polish	UPC	APC	PC
Insertion Loss	ypical ≤0.2dB Maximum ≤0.3dB		≤0.25dB
Return Loss	≥50dB	≥65dB	≥35dB
Interchangeability	≤0.2dB
Repeatability	≤0.1dB
Durability	≤0.2dB (1000 times mating)
Tensile Strengh	> 10kg
Temperature	≤0.2dB (-40+85 sustain 100 hours)
Humidity	≤0.2dB (+25+65 93 R.H.100 hours)
