fiber optic plc splitter ABS box 1x4 1x8 1x16 fiber optic plc splitter

Place of Origin : Hubei, China

Brand Name : OEM

Product name : PLC Splitter

Application : FTTH FTTB FTTX Network

Type : 1*2/1*4/1*8/1*16/1*32/1*64

Color : White

Certification : ISO9001:2008

Wavelength : 1260-1650nm

Material : PVC ABS

Connector Type : SC FC ST LC UPC

Fiber Type : G657A/G652D

Operating temperature : 40~+85

Supply Ability : 30000 Piece/Pieces per Month

Packaging Details : One pair per polybag,or as required package

Port : shenzhen port shanghai port

MOQ : 1 Piece/Pieces

Price : $1.31 - $28.30 / Pieces

Contact Now

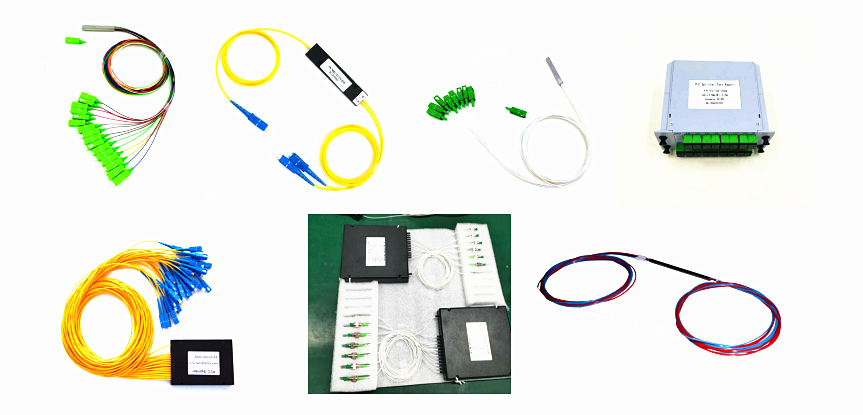

Product display

Product Features:

Good uniformity and low insertion loss
Low Polarization Dependent Loss
Excellent Environmental Stability
Excellent Mechanical
Stability Telcordia GR-1221 and GR-1209

Application:

Fiber to The Home (FTTH)
Passive optical networks (PON)
Local Area Networks (LAN)
Cable Television (CATV)
Test Equipment

Specification:

Parameter	Specification
Operating Wavelength (nm)	1260 ~ 1650
Type	1x2	1x4	1x8	1x16	1x32	1x64	2x4	2x8	2x16
Insertion Loss (dB) Max.	≤4.2	≤7.5	≤10.6	≤13.7	≤17.2	≤21	≤7.8	≤10.8	≤13.9
Uniformity (dB) Max	≤0.6	≤0.8	≤1.0	≤1.5	≤2.0	≤2.5	≤1.0	≤1.5	≤2.0
PDL(dB)Max	<0.2	<0.2	<0.2	<0.3	<0.3	<0.4	<0.3	<0.3	<0.4
Directivity (dB) Min	55
Return Loss (dB) Min	55(50)
Operating Temperature (°C)	-45~ +85
Storage Temperature (°C)	-5~ +75
Fiber length	1m or custom length
Fiber Type	Corning G656A1 or Fiberhome G657A1
Connector Type	Custom specified
Power Handling (mW)	300

fiber optic plc splitter ABS box 1x4 1x8 1x16 fiber optic plc splitter

Company Information

fiber optic plc splitter ABS box 1x4 1x8 1x16 fiber optic plc splitter

Exhibition

fiber optic plc splitter ABS box 1x4 1x8 1x16 fiber optic plc splitter

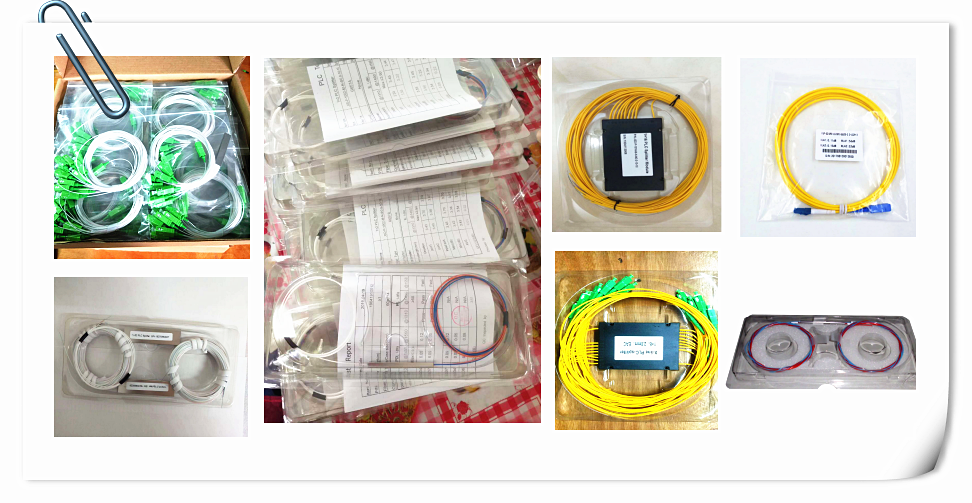

Packaging & Shipping

fiber optic plc splitter ABS box 1x4 1x8 1x16 fiber optic plc splitter

FAQ

Q1: How the warranty for products ?
A: 10 years,and maintance for whole life

Q2: Can we make OEM for products?
A: Yes, we can print your logo or label on the products or on the box.

Q3: Can you provide free samples ?
A: Some of low value samples can be free for you, but you need pay for the shipping cost.

Q4: How can you guarentee the quality ?
A: Build on our perfect quality management system, all of our products were 100% tested before the shipment.

Q5: What is your delivery time ?
A: Generally, sample: 3~5 working days. formal order: 7-10 working days.

Q6: What's your payment terms ?
A: We accept T/T, Western Union, Money Gram, Paypal.
For samples: 100% payment. Formal order: 30% as deposit, 70% balance payment before shipment
