Product display

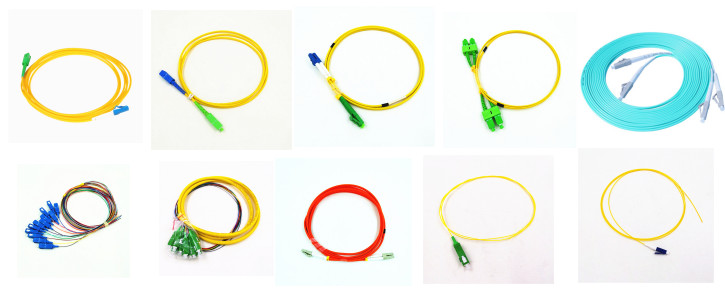

Patch Cords are used to provide optical connection for fiber optic electronics. The use of the patch cord provides a quick and easy method for routing fiber patches in data centers, head-ends, cellular hubs and central offices.
The patch cord can be used in interconnect or cross-connect path connecting the incoming fibers to the electronic equipment and providing patching within the fiber paths.
The 9/125μm single mode fiber patch cord meets RoHS compliant, and all cables are 100% optically tested for insertion loss to ensure high quality, it is very cost-effective for network cabling.
| Item | SM | MM |
| Link Type | FC/PC | FC/UPC | FC/APC | FC/PC |
| SC/PC | SC/UPC | SC/APC | SC/PC |
| ST/PC | ST/UPC | | ST/PC |
| LC/PC | LC/UPC | | LC/PC |
| MU/PC | MU/UPC | | MU/PC |
| Return Loss | ≥45dB | ≥50dB | ≥60dB | ≥35dB |
| Insertion Loss | ≤0.2dB |
| Operating Temperature | -40°C ~ +80°C |
| Repeatability | ≤0.1dB |
| Interchangeability | ≤0.2dB |
| Insertion and Pull Times | 1000 |
Related Product
FAQ
Q1: How the warranty for products ?
A: 10 years,and maintance for whole life
Q2: Can we make OEM for products?
A: Yes, we can print your logo or label on the products or on the box.
Q3: Can you provide free samples ?
A: Some of low value samples can be free for you, but you need pay for the shipping cost.
Q4: How can you guarentee the quality ?
A: Build on our perfect quality management system, all of our products were 100% tested before the shipment.
Q5: What is your delivery time ?
A: Generally, sample: 3~5 working days. formal order: 7-10 working days.
Q6: What's your payment terms ?
A: We accept T/T, Western Union, Money Gram, Paypal.
For samples: 100% payment. Formal order: 30% as deposit, 70% balance payment before shipment
